Radiator Water Cooling Heat Exchanger For Laser Beauty Machine

120mm 240mm 360mm Aluminum Radiator Water Cooling Heat Exchanger For Laser Beauty Machine

Classification:

Radiator For Industrial Production

online message

Product Details

Key attributes

Industry-specific attributes

Type	WATER COOLING
Power	Customized

Other attributes

Place of Origin	Guangdong, China
Heatsink Material	Aluminum
Fan Life	40000 hrs
Air Volume	Customized
Noise	Customized
Fan Size	Customized
Bearing	Alloy Bearing
Power Interface	Customized
Fan Speed Control	Customized
Application	Customized
Brand Name	Lineng
Model Number	60, 80,120, 240, 480
LED Color	Customized
Product name	Radiator
Color	Customized Colors
Name	CPU Cooler Heatsink
Packing	Carton
Size	Customized
Quality	High-quality
Keyword	Heat Pipe Cpu Cooler
Used in	PC Computer Server,beauty apparatus
Payment	T/T
Style	Cooler Cpu

Specification

Model	60	80	90
Material	Aluminium	Aluminium	Aluminium
External dimensions	836026mm	797916mm	13110032mm
Density of heat dissipation fins	12 Fold*Inch	12 Fold*Inch	12 Fold*Inch
Quantity & specification of heat dissipation fins	165mm8 tubes	167mm9 tubes	168mm9 tubes
Specification of heat dissipation pipe	16mm*2mm	16mm*2mm	16mm*2mm
Quantity of heat dissipation pipe	6	8	8
Sealing process	Nitrogen protection brazing	Nitrogen protection brazing	Nitrogen protection brazing
Surface treatment process	Spray plastic anti-corrosion treatment	Spray plastic anti-corrosion treatment	Spray plastic anti-corrosion treatment
Inlet and outlet specifications	∅8mm	∅8mm	1.∅9.5mm 2.G1/4Threaded port
Fan installation dimensions	60±0.5	72±0.5	87±0.5
Heat dissipation area	≈0.2㎡	≈0.2㎡	≈0.25㎡
Water caoacity	≈40ml	≈45ml	≈55ml

Model	120	240	280/320/480 /Customized
Material	Aluminium	Aluminium	Aluminium
External dimensions	15812030mm	27512030mm	Customized
Density of heat dissipation fins	12 Fold*Inch	12 Fold*Inch	12 Fold*Inch
Quantity & specification of heat dissipation fins	168mm11 tubes	168mm9 tubes	Customized
Specification of heat dissipation pipe	16mm*2mm	16mm*2mm	Customized
Quantity of heat dissipation pipe	10	10	Customized
Sealing process	Nitrogen protection brazing	Nitrogen protection brazing	Customized
Surface treatment process	Spray plastic anti-corrosion treatment	Spray plastic anti-corrosion treatment	Customized
Inlet and outlet specifications	1.∅9.5mm 2.G1/4Threaded port	1.∅9.5mm 2.G1/4Threaded port	Customized
Fan installation dimensions	105±0.5	105±0.5	Customized
Heat dissipation area	≈0.28㎡	≈0.55㎡	Customized
Water caoacity	≈120ml	≈150ml	Customized

Product Description

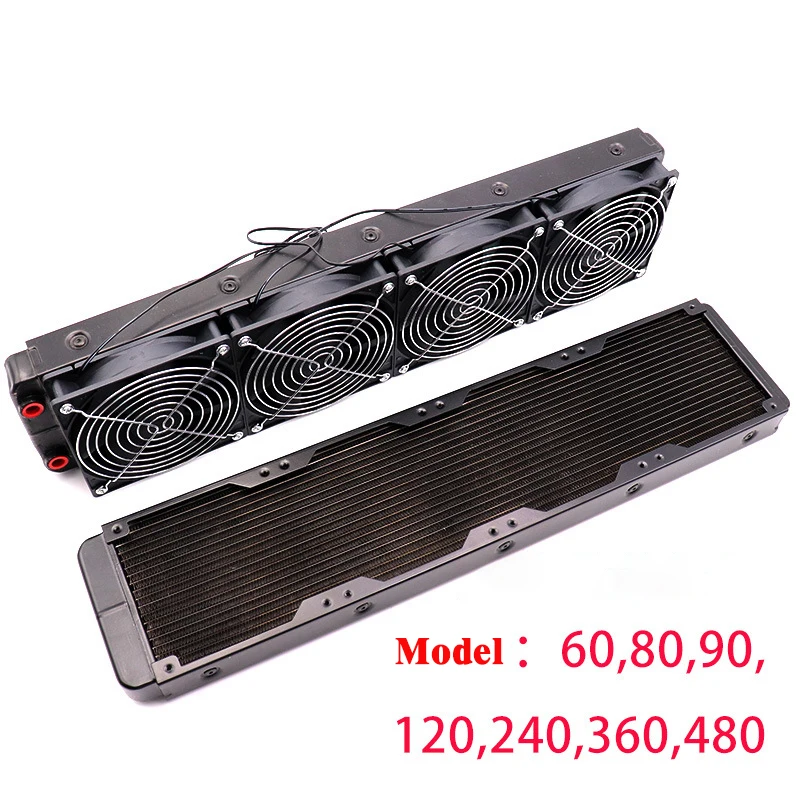

60/80/90/120/240/280/360/480/customized cooling water radiator

Material: aluminum

Pipe: 6/8/10/16/18 pipe

Color: black/white/Customized

Attention: installation points: pay attention to the pipe under the screw hole when installing the fan. The screw can not be pushed to the pipe, otherwise, it can not be guaranteed due to water leakage through the top!

Function: It is used to dissipate heat on various high-temperature equipment that need to be turned on for a long time, such as servers, computers, electric massage and beauty equipment, industrial machinery and equipment, etc.

Keywords: radiator

Aluminium Computer/beauty Equipment Water Cooling Radiator

Beauty Medical Equipment Heatsink
